BORED PILE EQUIPMENT Telescopic Kelly bar type Earth Drilling rig NISSHA ED-series

NISSHA ED( Earth boy -Nick name ) earth drilling rigs are of “Kelly bar type” earth drilling rigs for constructing various sized bored piles (Cast-in place concrete piles) into comparatively soft stratums where no cobbles and boulders contained. There are two type of rigs, a lattice boom type (Two models) and a telescopic boom type (One model). A newly developed [High power type earth drilling rig] PDH-90 is utilized to drill into comparatively hard stratums.
	Applications Drilling bore holes for constructing various sized cast-in-place concrete piles into the comparatively soft stratums (Maximum S.P.T. N-value 50 :excluding PDH-90 ). Fleet of earth drilling rigs Ranging from φ1000 〜 3000mm in shaft diameter and 43〜62m in depth. Bell pile bucket (φ1700〜4100) Brief specifications Full-hydraulic drive, Self-propelled, Square/round type telescopic kelly bar with rotary bucket. Lattice boom type/ telescopic boom type/Leader type. Bell-pile bucket with computer monitor/recorder (Optional extra).
TECHNICAL INFORMATION Selection of Earth drilling rigs PPT-EARTH DRILLING RIG   SELECTION.pdf  97kb Bell-pile technique PPT-Bell pile technique.pdf  666kb

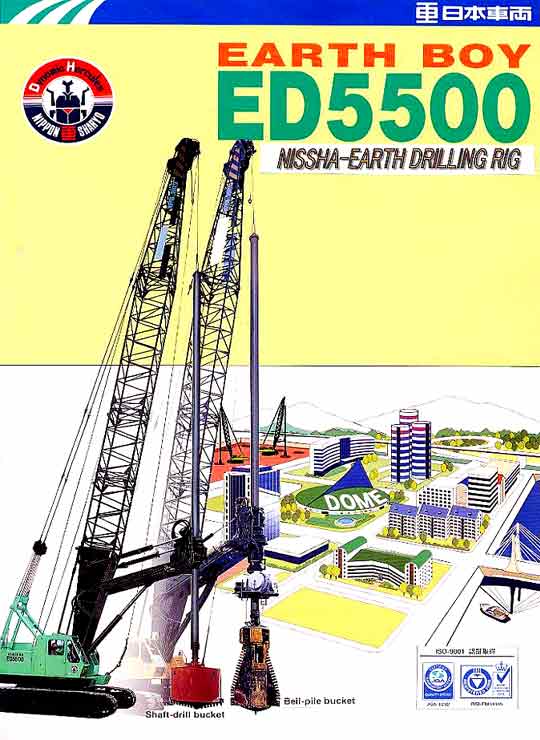

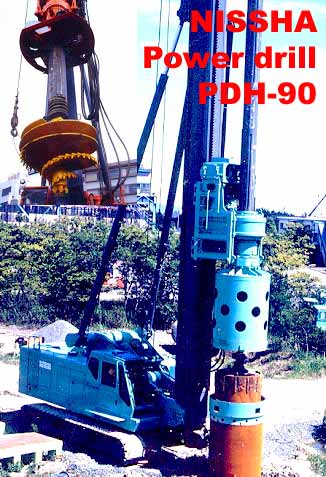

ED 5500 ED 5500 Size: Maximum drilling depth : approximately 5500 cm. ED…Earth Drilling rig TE…Telescopic Earth drilling rig P DH -90 P DH -90 Size: Operating weight : approximately 90 ton Dynamic Hercules series Powerful:

Fleet of NISSHA TE/ED/PDH series Kelly bar type Earth drilling rig
(Crick underlined parts for getting more information)
The right is reserved to change the specifications without notice.
Please contact NISSHA Representatives to get up to date data.

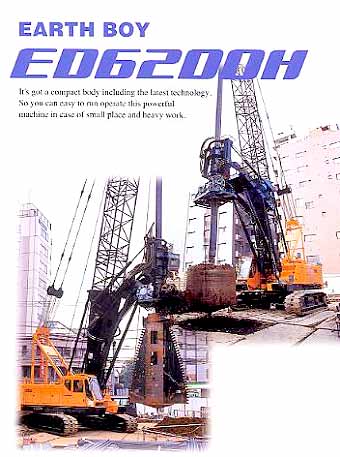

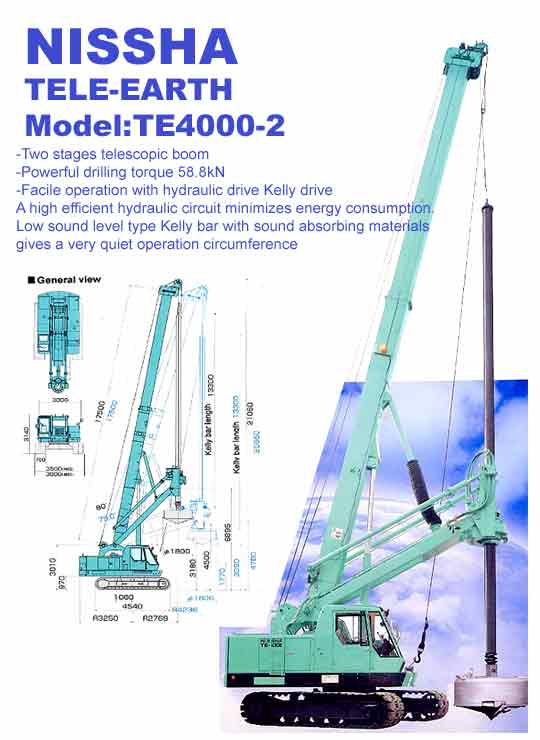

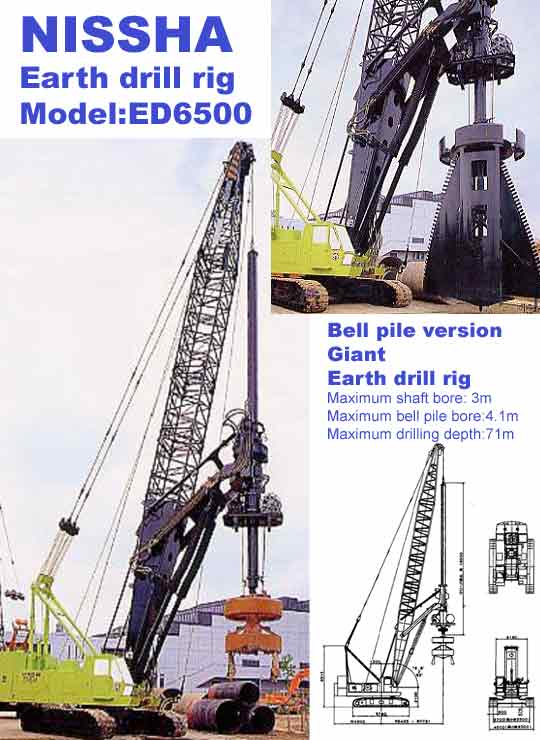

Model	TE4000-2	ED5500-2	ED6200H	ED6500	PDH-90
Photos
Specification	SPEC-ＴE4000.pdf 235kb	SPEC-ED5500.pdf 371kb	SPEC-ED6200H.pdf 127kb	SPEC-ED6500.pdf 202kb	SPEC-PDH90.pdf 132kb
Maximum drilling depth With 10m stem bar Without stem bar (m)	53	68	-	-	-
	43	58	62	71	45.5
Maximum bore	φ2000	φ2000	φ3000	φ3000	φ2500
Kelly bar torque High / Low speed (kN-m/tf-m)	58.8 /6.0	58.8 /6.0	105 / 10.7 55.9 / 5.7	120 / 12.2   60 6.1	Casing :294/30 196 / 20
Kelly bar speed Low / High speed (min-1/rpm)	15/30	14/28	10/20	18/33	｢Casing3.1〜18.5 ｣/4.6〜18.5
Type of telescopic kelly bar	4-stage, round	4-stage, round	4-stage, round	5-stage, round	4-stage, round
Engine Maker/model	HINO/H06C-T	HINO/EM100	HINO/P09C-TD	HINO/EP100-T	HINO/P09C-TD
Output :kW[PS]/rpm-1[rpm]	118[160]/2100	114[155]/2000	184[250]/2100	147[200]/2000	184[250]/2100
Boom length (m)	17.5	23	24	26	18 (Leader)
Operating weight	46.4	57.9	83.9	116.6	93
Winch speed Low/High :m/min.	33/66	29/58	26/45	26/58	24〜83
Swing speed :rpm-1[pm]	3.5	3.3 [3.3]	2.8	2.7	3.5[3.5]
Travel speed :km/hr	2.0	1.3	1.4	0.8	1.4
Lifting crane capacity (t)	Auxiliary:6.0	Auxiliary:6.0 Crane:45	Auxiliary:15	Auxiliary:-	Auxiliary:6.0
Applicable soil conditions	<N50	<N50	<N50	<N50	Weathered rock

BK series Bell-pile bucket SPEC-BELL PILE BUCKET.pdf 166kb
　

Typical Operation Procedures in constructing a cast-in-place concrete pile with a bell pile bottom.

1. Centering 2. Starting drilling 3. Inserting stand pipe 4.Feeding bentonite 5.Drilling till the specified depth 6.Inserting belling bucket 7. Reaming bore hole bottom 8. Measuring depth 9.Setting up iron-reinforcement cage 10. Inserting tremie tube 11. Cleaning slime by an air-lift 12. 13 Concreting 14.Completing cast-in-place concrete pile with belling bottom.
