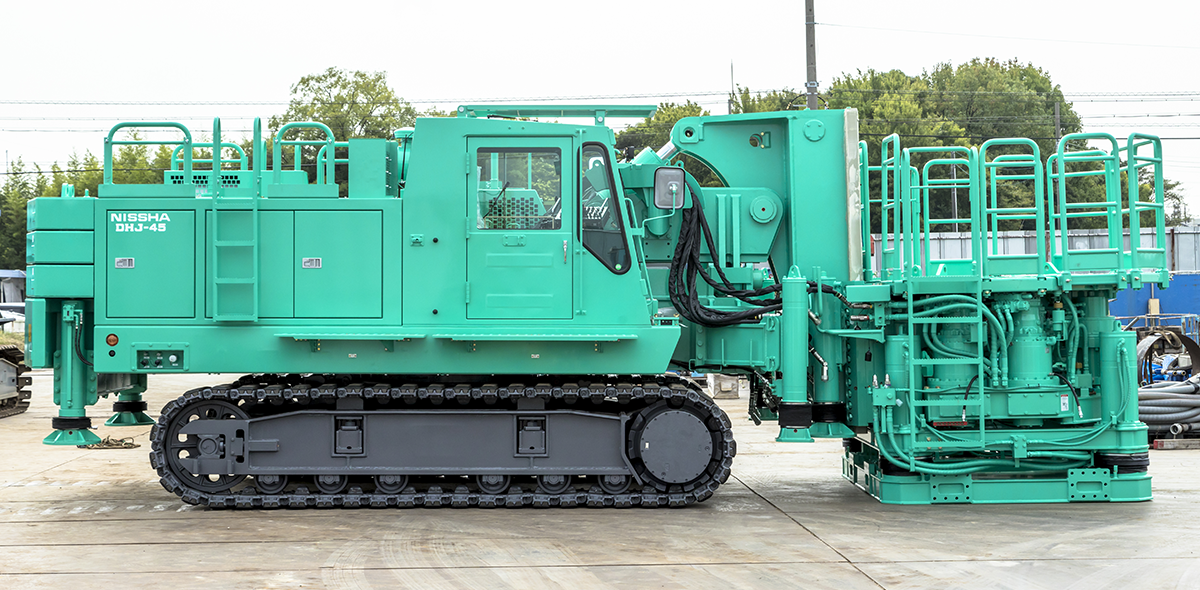

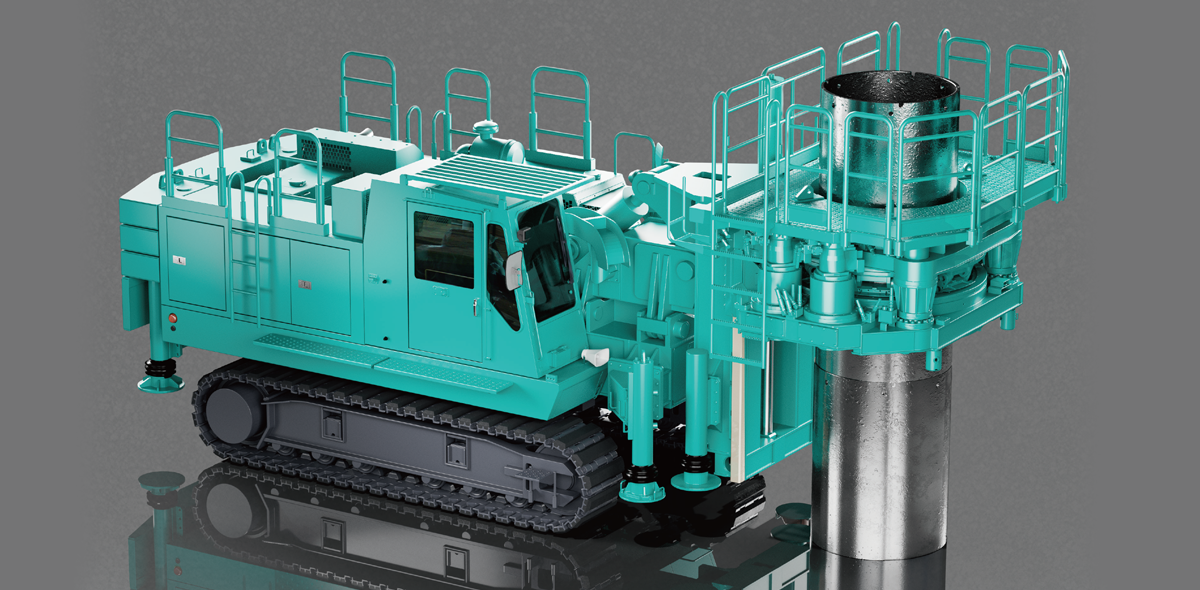

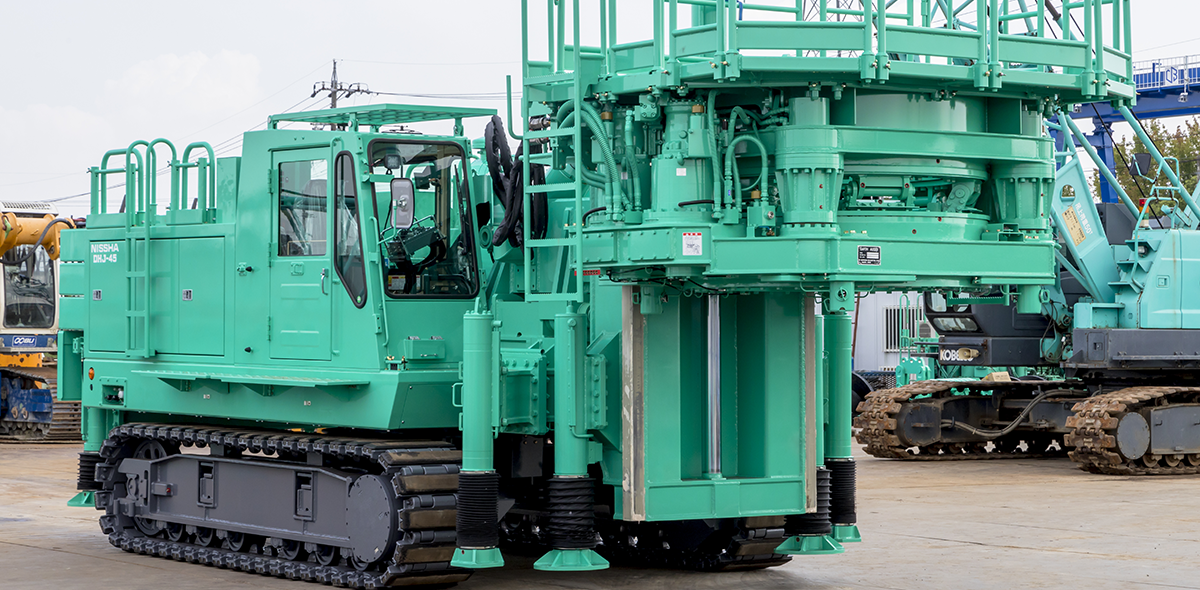

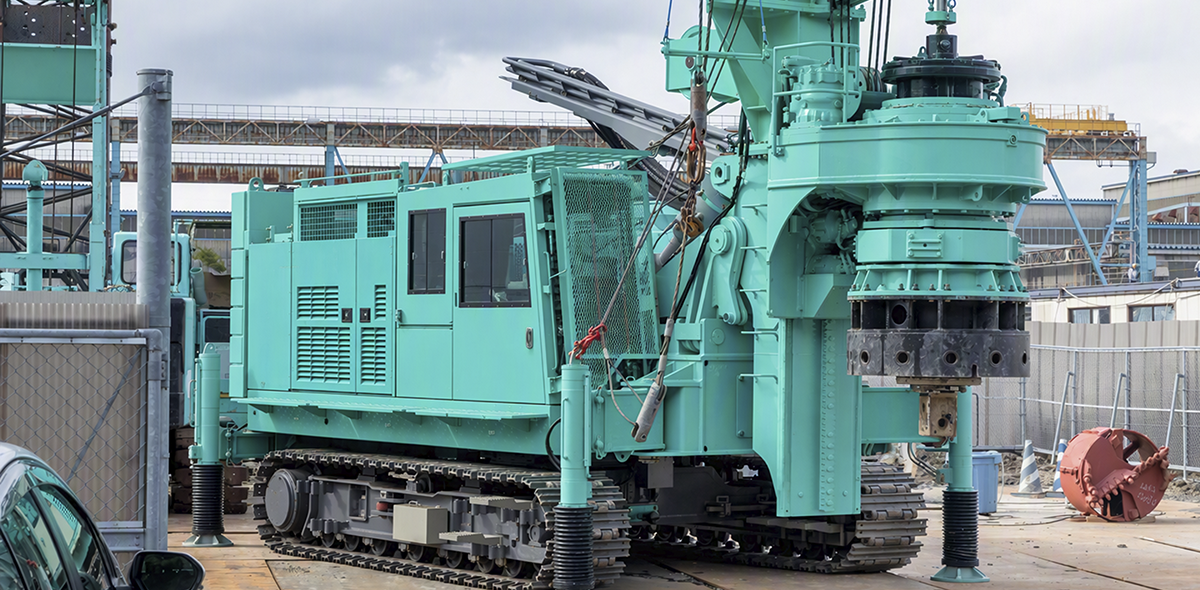

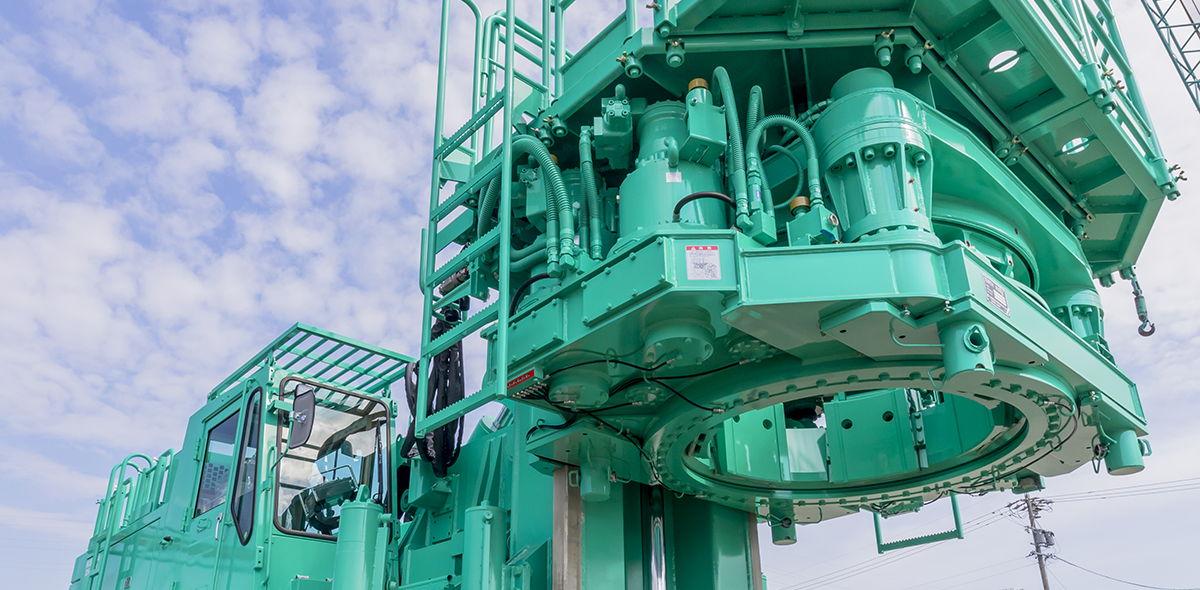

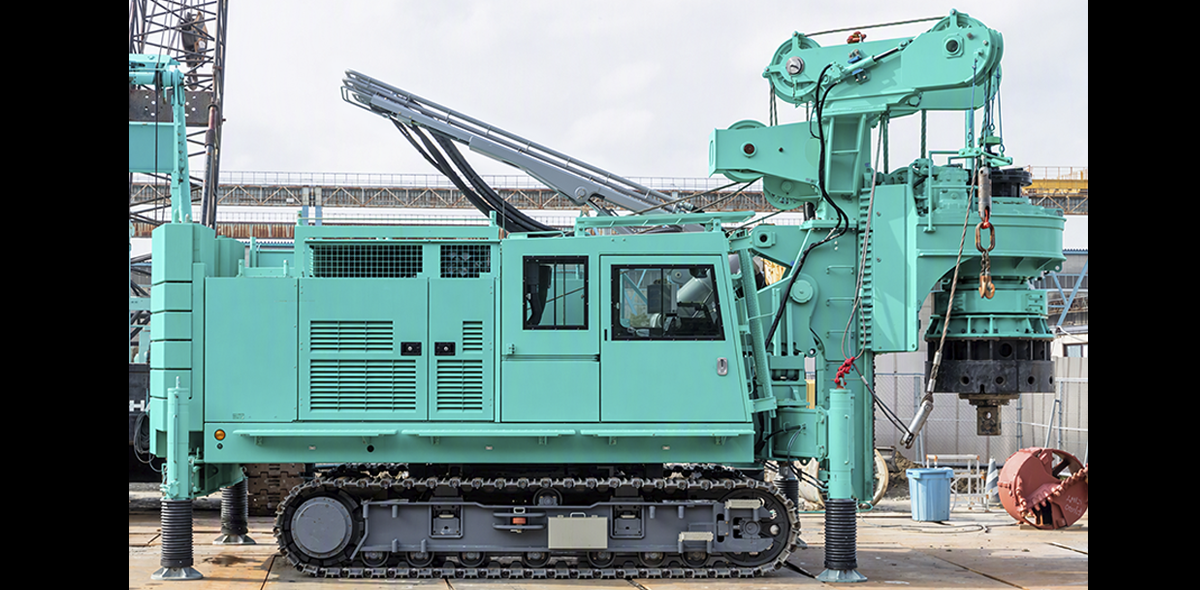

Tight jobsites demand a machine that fits—without compromising on power. This purpose-built Kelly bar machine combines a compact design with high rotary torque to meet the demands of obstacle removal in urban areas.
Its compact footprint makes the machine easier to position on jobsites where working space is limited.

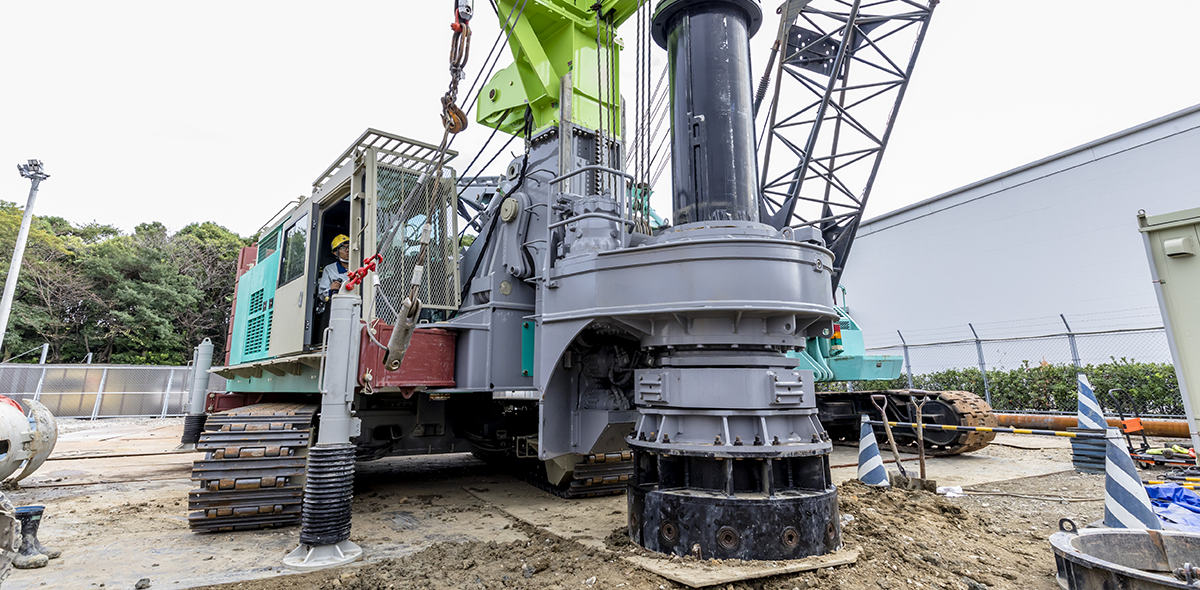

The Kelly bar system is specifically designed to remove underground obstructions, helping crews address the challenges of urban redevelopment.
High rotary torque provides the force needed for demanding obstruction removal work.
|
Models |
DHR70-8 |
DHJ45-5RC120 |
 |
|
|
 |
 |
|
|
Purpose |
Obstruction removal |
Obstruction removal |
|
Auger rotation torque |
35~447 kN·m |
57~694 kN·m |
|
Auger rotation speed |
1.9 ~ 14.7 min-1 |
1.7 ~ 13.4 min-1 |
|
Auger crowd/extraction force |
294/196 kN |
295/197 kN |
|
engine |
VOLVO PENTA TAD572VE Tier4 engine |
Hino JO8E-TM |
|
Engine output |
160 kW/2,000 min-1 |
209 kW/2,100 min-1 |
